16mm2 25mm2 35mm2 50mm2 70mm2 Super Flexible Welding Cable

16mm2 25mm2 35mm2 50mm2 70mm2 Super Flexible Welding Cable
16mm2 25mm2 35mm2 50mm2 70mm2 Super Flexible Welding Cable 16mm2 25mm2 35mm2 50mm2 70mm2 Super Flexible Welding Cable

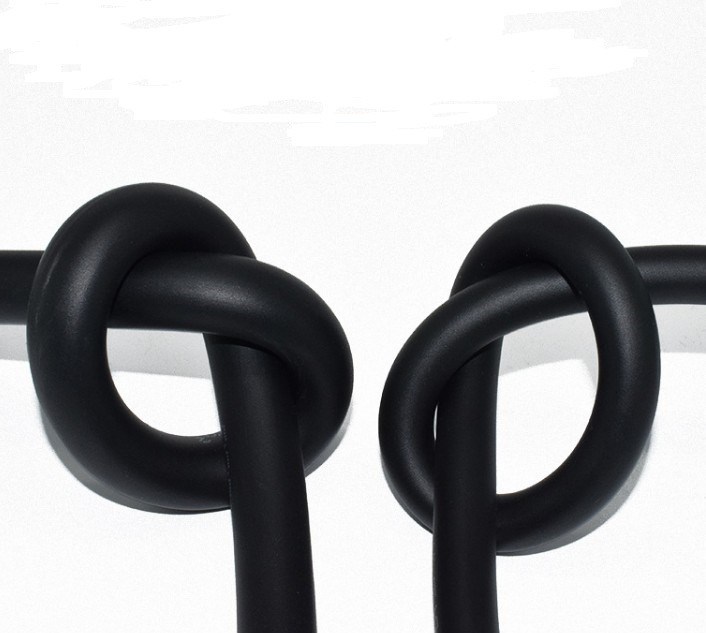

Large Image :  16mm2 25mm2 35mm2 50mm2 70mm2 Super Flexible Welding Cable

Product Details:
Place of Origin: China
Brand Name: Nuoxing
Certification: CE/CCC/ISO9001
Model Number: YH
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD 1-10
Packaging Details: standard export packing in wooden drums or boxes
Delivery Time: 10-20 days
Payment Terms: L/C, , T/T, Western Union
Supply Ability: 1000 km per month

16mm2 25mm2 35mm2 50mm2 70mm2 Super Flexible Welding Cable

Description
Product Name: Copper Core 16mm2 25mm2 35mm2 50mm2 70mm2 Rubber Sheathed Super Flexible Welding Cable Conductor Material: Copper
Rated Voltage: 450/750V Insulation Material: Rubber
Sheath Material: Rubber Section: 10-185 MM²
High Light:

70mm2 Super Flexible Welding Cable

,

50mm2 Super Flexible Welding Cable

,

25mm2 35mm2 Welding Cable

Copper Core 16mm2 25mm2 35mm2 50mm2 70mm2 Rubber Sheathed Super Flexible Welding Cable





Introduction:


The electric welding machine cable is a neoprene compound sheath with heat resistance, oil resistance and non-flammability. This product is suitable for the secondary side wiring and connection of the electric welding machine with the voltage to the ground not exceeding 200V and the pulsating DC peak value of 400V electric welding machine. The maximum operating temperature of the cable is 65°C.



Product structure:


Conductor: Multi-strand ultra-fine bare copper wire stranded conductor, conductor structure according to VDE 0295/IEC 60228 regulations
Insulation: Special rubber outer sheath
Outer sheath color: black



Technical parameter:


Working voltage: 450/750V
Test voltage: 1000V
Small bending radius:
H01N2-D: 12 x cable outer diameter
H01N2-E: 10 x cable outer diameter
Operating temperature:
Mobile installation: -25℃ to + 80℃
Fixed installation: -40℃ to + 80℃
Flame retardant: in accordance with IEC 60332-1



Specificaiton:



Product name Rubber Sheathed Cable
Certifications CE/CCC/ISO
Standard IEC/ASTM,DIN,BS,AS,CSA,NFC
Rated Voltage 300/500V 450/750 V
Conductor material Copper
Insulation Material Rubber
Color Black, Red, Orange, Blue etc
Jacket Material Rubber
Number of cores 1C,2C,3C,4C,5C,3+1C,3+2C,4+1C
Section area 1.5MM2 - 400MM2



16mm2 25mm2 35mm2 50mm2 70mm2 Super Flexible Welding Cable 0



Extended information:


During storage, the cable should be packed in a standardized manner, avoid long-term open-air exposure, and both ends should be sealed reliably. Long-term storage in a humid environment is not allowed, and the cable tray should not be stored flat. The height of the tray should be considered and fixed effectively during transportation. Multiple pallets are not allowed to be lifted at the same time when lifting, and pushing down from high places is strictly prohibited.



Special tools should be used for cable laying, such as cable release frame, guide roller, etc., to prevent mechanical damage during laying and keep away from heat sources. When laying cables through pipes, the inner diameter of the pipes should not be less than 1.5 times the outer diameter of the cables. When multiple cables pass through the pipeline, it is prohibited to squeeze the cables. The total area of the cable should not exceed 40% of the total area of the pipe.
