Product Details:
|
| Product Name: | 1KV Or 10KV Or 35KV Aerial Bundle Cable | Insulation Material: | XLPE |
|---|---|---|---|
| Type: | Low Votage | Application: | Construction |
| Conductor Material: | Aluminum | Jacket: | None |
| Certificate: | ISO9001/ISO14001 /OHSAS18001/CCC | Standard: | GB, IEC, BS, ASTM |
| Cores: | Multiple Core | Rated Voltage: | 1KV Or 10KV Or 35KV |
| High Light: | 35KV Aerial Bundle Cable,1KV 10KV Aerial Bundle Cable,Aluminum ABC Overhead Cable |
||

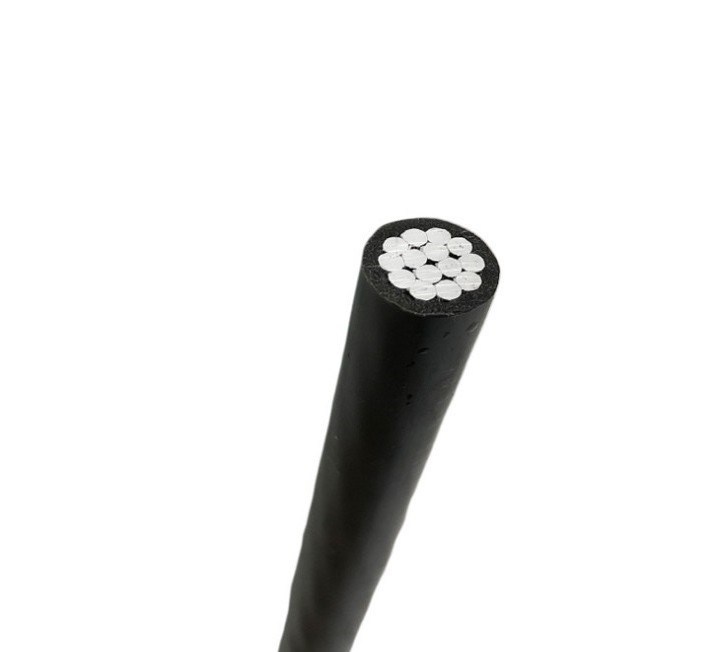

1KV Or 10KV Or 35KV Aluminum Electrical ABC Overhead Aerial Bundle Cable
Application:
Aluminum Covered Line Wire is designed for use on overhead secondary distribution lines. Covered Line Wire is not an electrically insulated conductor and is treated as a bare conductor when installed. The insulation provides protection against circuit interruption due to weather.
Standards:
NFC 33-209
Characteristics:
1.The long-term allowable working temperature of cable conductor should not exceed 90℃.
2.The installation temperature of the cable shall be no less than -20 °C.
Construction:
1.Phase conductor: Aluminum conductor
2.Neutral conductor: Aluminum alloy conductor
3.Public lighting: Aluminum conductor
4.Testing conductor: Copper conductor
5.Insulation: XLPE
Applicable conditions:
1. Long-term allowable working temperature of cable conductor: PVC and polyethylene insulation should not exceed 70℃; cross-linked polyethylene insulation should not exceed 90℃.
2. The laying temperature of the cable is not lower than -20℃.
3. The allowable bending radius of the cable: if the cable outer diameter (D) is less than 25mm, it should be no less than 4D; if the cable outer diameter (D) is 25mm and above, it should be no less than 6D.
Certificates:
Cladding wire (aluminum cladding wire) meets all international standards such AS ASTM, IEC, DIN, BS, AS, CSA, NFC, SS, etc. In addition, we also accept OEM service to meet your special requirements.
Product parameter:
| Product name | Aerial Bundle Cable |
| Certifications | ISO9001/ISO14001 /OHSAS18001/CCC |
| Standard | GB, IEC, BS, ASTM |
| Rated voltage | 0.6/1KV |
| Test voltage | 4 KV |
| Phase Conductor | Stranded Aluminum Wires |
| Insulation | Cross-linked polyethylene (XLPE) |
| Neutral | AAC AAAC ASCR |
| Laying temperature | min. -20 |
| Operating temperature | -30 to +80 |
| OEM | Available |
FAQ:
Q1. Are you trading company or manufacturer ?
A: We are professional manufacture with our own independent export rights.
Q2. What if I don’t find the type and size of cable I need on this page?
A: Don't worry. Contact us and send us your requirements, we will help you choose the correct cable you need. It is better if you have the following information: cable voltage, conductor material, insulation and outer sheath material, armor type. Otherwise, you can provide us with cable installation environment, application requirements, etc.
Q3. Can you produce according to the samples ?
A: Yes, we can produce by your samples or technical drawings.
Q4. How long is you delivery time ?
A: Depends on your quantity, normally 1-3 weeks.
