Product Details:
|
Product Name: | Class 5 Flexible Copper Multicore Flat PVC Insulated Cable | Conductor: | Flexible Bare Copper Wire , Class 5 |
---|---|---|---|
Insulation Material: | PVC | Rated Voltage: | 450V/750V |
Jacket: | PVC | Standard: | BS EN 50214 |
High Light: | Flat PVC Insulated Cable,450V/750V PVC Insulated Cable,Class 5 Multi Core Copper Cable |

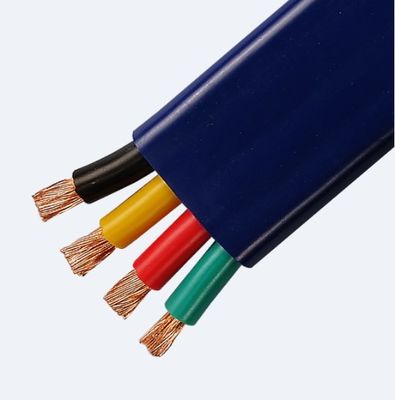

Class 5 Flexible Copper Multicore 450V/750V Flat PVC Insulated Cable
Application:
Flat cables are produced by a standard organization and are suitable for mobile electrical equipment with AC rated voltages of 450V/70V and below. The flat structure is especially suitable for frequent bending occasions, without kinking, and neatly folded, such as driving. It is suitable for electrical connection between mobile electrical equipment in harsh environments such as power generation, metallurgy, chemical industry, and ports.
Skills requirement:
1. AC rated voltage:
Uo/U=450V/750V;
Uo: the effective value of voltage between any phase conductor and ground;
U: The effective value of the voltage between any two phase conductors.
2. Operating voltage:
In the AC system, the working voltage is not more than 1.1 times the rated voltage;
In the DC system, the working voltage is not more than 1.5 times the rated voltage.
3. Long-term working temperature of wire core: less than or equal to 65℃.
Specificaiton:
Product name | PVC Insulated Cable |
Certifications | CE/CCC/ISO |
Standard | IEC60502-1 |
Rated Voltage | 450V/750V |
Conductor material | Copper/Aluminum |
Insulation Material | PVC |
Armoured Material | None/Steel Tape/Steel wire |
Jacket Material | PVC |
Number of cores | 1C,2C,3C,4C,5C,3+1C,3+2C,4+1C |
Section area | 1.5MM2 - 400MM2 |
PVC Insulated Cable
