Product Details:
|
| Product Name: | Fire Resistant Electrical Control Cable 4*6 SQMM | Conductor Material: | Copper |
|---|---|---|---|
| Insulation Material: | PVC | Rated Voltage: | 300V/500V |
| Flame Retardant Characteristics: | IEC 60 332.1 | Number Of Cores: | 2-5 Cores, 7-36 Cores |
| High Light: | 4*6 SQMM Electrical Control Cable,4*6 SQMM RVV cable,4*6 SQMM CU Core RVV cable |
||

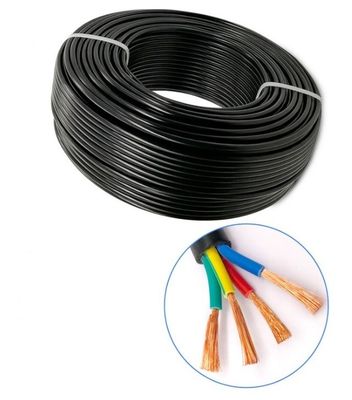

CU Core 300V/500V Fire Resistant Electrical Control Cable 4*6 SQMM
Introduction:
The full name of RVV cable is copper core PVC insulated PVC sheathed flexible cable, also known as light PVC insulated poly, commonly known as soft sheathed wire, which is a kind of sheathed wire. RVV wire and cable is two or more RV wires plus a layer of sheath. RVV cable is the most commonly used cable for weak current systems. The number of core wires is variable, two or more, and there is a PVC sheath on the outside. There is no special requirement for the arrangement of the core wires. The letter R represents the flexible cord and the letter V represents the insulator polyvinyl chloride (PVC)
For example:RVV2*0.5 means 2 wires of 0.5 square millimeter plus a layer of outer sheath.
Instruction:
1. RVV implementation standard GB/T5023.5-2008
2. The rated voltage is 2271EC52 (300/300V) 2271EC53 (300/500V)
3. PVC sheath
4. Polyvinyl chloride insulation
5. The conductor is multi-core annealed bare copper stranded
6. The normal working temperature does not exceed 70℃
7. The product has passed CCC certification
Specificaiton:
| Product name | Fire Resistant Control Cable |
| Certifications | CE/CCC/ISO |
| Standard | IEC60502-1 |
| Rated Voltage | 300V/500V |
| Conductor material | Copper |
| Insulation Material | PVC |
| Armoured Material | None/Steel Tape/Steel wire |
| Jacket Material | PVC |
| Number of cores | 2-5 cores, 7-36 cores |
| Section area | 0.5-6 mm² |
Fire Resistant Control Cable
