Product Details:
|
| Product Name: | 5 Core Copper Low Voltage Electrical Cable | Conductor: | Copper Or Aluminum |
|---|---|---|---|
| Insulation Material: | XLPE | Application: | Electricity Supply |
| Armor: | Non | Jacket: | PVC |
| Standard: | IEC60502 | Binder Tape: | Non-hygroscopic Material |

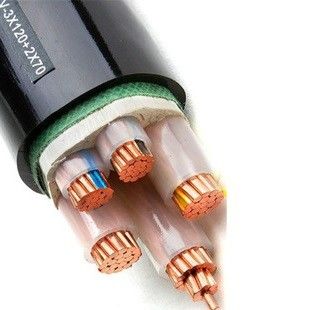

5 Core Copper XLPE Insulated PVC N2XY Low Voltage Electrical Cable
Requirements:
Working temperature: The highest rated working temperature of conductor is 90℃
Conductor short-circuit temperature: the highest temperature should not exceed 250℃, and the longest time should not exceed 5 seconds.
Installation temperature:
Cable installation temperature is not lower than 0℃
Laying in the air: ambient temperature 40℃
Laying in soil: ambient temperature 25℃
Construction:
Single-core
1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Cross-linked polyethylene XLPE
3. Outer sheath: Polyvinyl chloride PVC
Specificaiton:
| Product name | Low Voltage Electrical Cable |
| Certifications | CE/CCC/ISO |
| Standard | IEC60502-1 |
| Rated Voltage | 0.6/1 KV |
| Conductor material | Copper/Aluminum |
| Insulation Material | XLPE/PVC |
| Armoured Material | None/Steel Tape/Steel wire |
| Jacket Material | PVC |
| Number of cores | 1C,2C,3C,4C,5C,3+1C,3+2C,4+1C |
| Section area | 1.5MM2 - 400MM2 |
Company Profile:
Zhongtian Cable is a modern enterprise focusing on the development, production and sales of wires and cables. Our company has a group of high-quality scientific and technological elites who have been committed to the production and research and development of cable products for many years; our company implements scientific management in the industry, has advanced production technology, modern production and testing equipment.
The product production range covers dozens of categories and more than 1,000 specifications such as cross-linked cables below 35KV, power cables, control cables, flame-retardant and fire-resistant cables, low-smoke and halogen-free cables, pre-branched cables, rubber-sheathed cables, and aluminum alloy cables. Cable products.
The company's many series of products have been widely used in my country's electric power, mining, petrochemical, urban construction, public transportation, real estate development and other fields.
