Product Details:
|
| Product Name: | Multi-Strand AAC Bare Aluminium Stranded Wire Conductor | Conductor Material: | Aluminum |
|---|---|---|---|
| Application: | Overhead | Insulation Material: | None |
| Composition: | Single Strand/Multi-strand Aluminum Wire | Standard: | ASTM B 231, BS 215 Part 1, IEC 61089, DIN 48201, CSA C 49, JIS C 3109, Etc. |
| High Light: | ASTM B 231 Multi Strand Conductors,AAC Aluminium Stranded Wire,ASTM B 231 Multi Strand Conductor |
||

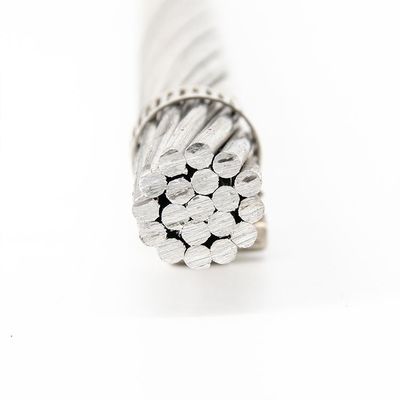

Multi-Strand AAC Bare Aluminium Stranded Wire Conductor With ASTM B 231
Application:
AAC bare aluminum conductor is also called aluminum stranded wire. It is made of electrolytic refined aluminum with a minimum purity of 99.7%.
Standard:
BS 215-1 / BS EN 50182 / IEC 61089 / ASTM B 231/B 231M / DIN 48201-5.
Structure:
Concentric stranded aluminum conductor (AAC) is made of one or more hard-drawn 1350 aluminum alloy strands. These conductors are used for low, medium and high voltage overhead lines.
AAC has been widely used in urban areas. The span of these areas is usually short, but the electrical conductivity requirements are higher. The excellent corrosion resistance of aluminum makes AAC the conductor of choice in coastal areas.
Due to its relatively poor strength-to-weight ratio, AAC has limited use in transmission lines and rural power distribution because of the large span of use.
All aluminum conductors are composed of one or more strands of aluminum wire.
Specificaiton:
| Product name | Bare Aluminium Conductor |
| Certifications | CE/CCC/ISO |
| Standard | ASTM,IEC, DIN,BS |
| Conductor material | Stranded Aluminum |
| Insulation Material | None |
| Section Area | 10-1000 sqmm |
| Packing | wooden drum |
| Warranty | one year |
Operating conditions:
|
Ambient temperature |
-5°C - 50°C |
|
Wind pressure |
80 – 130kg/m2 |
|
Seismic Acceleration |
0.12 - 0.05g |
|
Isokeraunic Level |
10 – 18 |
|
Relative humidity |
5 – 100% |
Bare Aluminium Conductor
