Product Details:
|
| Product Name: | Copper Conductor XLPE Insulated Cable | Conductor Material: | Copper |
|---|---|---|---|
| Application: | Underground,Industrial,Construction,Power Station | Type: | Low Voltage |
| Insulation Material: | XLPE | Standard: | IEC60502 |
| High Light: | CCC XLPE Insulated Armoured Cable,PVC Sheathed LV Power Cable,400MM2 XLPE Insulated Armoured Cable |
||

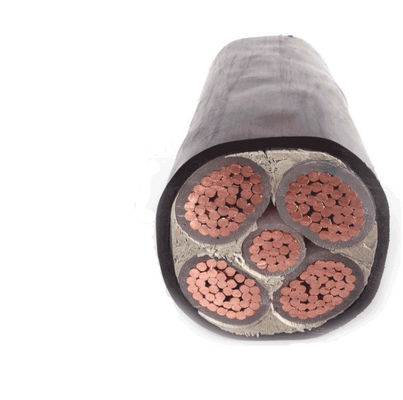

Copper Conductor Armoured PVC Sheathed Low Voltage XLPE Insulated Power Cable
Application:
The XLPE insulated cable is used for electricity supply in low voltage installation systems. They are adapted
to installation in indoors and outdoors, in cable ducts, underground, in power stations, local energy
distributions, industrial plants etc.
Specificaiton:
| Product name | XLPE Insulated Cable |
| Certifications | CE/CCC/ISO |
| Standard | IEC60502-1 |
| Rated Voltage | 0.6/1 KV |
| Conductor material | Copper/Aluminum |
| Insulation Material | XLPE |
| Armoured Material | None/Steel Tape/Steel wire |
| Jacket Material | PVC |
| Number of cores | 1C,2C,3C,4C,5C,3+1C,3+2C,4+1C |
| Section area | 1.5MM2 - 400MM2 |
