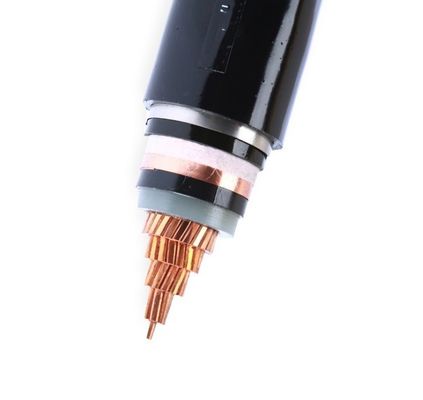

Copper 1 Core Steel Tape Armoured YJV22 Medium Voltage Cables

Copper 1 Core Steel Tape Armoured YJV22 Medium Voltage Cables
Copper 1 Core Steel Tape Armoured YJV22 Medium Voltage Cables Copper 1 Core Steel Tape Armoured YJV22 Medium Voltage Cables

Large Image :  Copper 1 Core Steel Tape Armoured YJV22 Medium Voltage Cables

Product Details:
Place of Origin: China
Brand Name: Nuoxing
Certification: CE/CCC/ISO9001
Model Number: N2XBY/YJV22
Payment & Shipping Terms:
Minimum Order Quantity: 1000 meters
Price: USD 1-100
Packaging Details: standard export packing in wooden drums or boxes
Delivery Time: 10-20 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 km per month

Copper 1 Core Steel Tape Armoured YJV22 Medium Voltage Cables

Description
Product Name: Single Core Medium Voltage Electrical Cables Conductor Material: Copper
Insulation Material: XLPE Application: Power Delivery
Type: Medium Voltage Jacket: PVC
Standard: IEC60502 Armor Material: STA
High Light:

1 Core Steel Tape Armoured

,

Armoured Medium Voltage Cables

,

YJV22 Medium Voltage Cables

Copper Single Core Steel Tape Armoured STA Medium Voltage Electrical Cables For Power Delivery





Use characteristics:



-The cable rated voltage U0/U(Um) is expressed as follows
U0/U(Um)=3.6/6(7.2)-6/6(7.2)-6/10(12)-8.7/10(12)-8.7/15(17.5)-12/20(24)-18 /30(36)-21/35(40.5)-26/35(40.5)kV.

-Conductor rated working temperature
The maximum rated working temperature of the cable conductor is 90°C.

-When short-circuited (the longest duration does not exceed 5s), the maximum temperature of the cable conductor does not exceed 250°C.

-Laying environment temperature
The ambient temperature during cable laying should not be lower than 0°C, otherwise preheating is required.

-Installation bending radius
Minimum bending radius during cable installation



Specificaiton:



IEC 60228 Conductors
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 35kV(Um=40.5kV) - Part 1: Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)


Main technical features:


The cross-linked polyethylene insulated cable adopts peroxide cross-linking method, so that the polyethylene molecule changes from a linear molecular structure to a three-dimensional network structure, and from a thermoplastic material to a thermosetting material. The working temperature is increased from 70°C to 90°C. Improve the current-carrying capacity of the cable.

Cross-linked polyethylene insulated cables have excellent electrical properties, heat resistance, chemical resistance, environmental stress cracking resistance, aging resistance, and long service life.


Product name Medium Voltage Cables
Certifications CE/CCC/ISO
Standard IEC60502-1
Rated Voltage 0.6/1 KV
Conductor material Copper/Aluminum
Insulation Material XLPE/PVC
Armoured Material None/Steel Tape/Steel wire
Jacket Material PVC
Number of cores 1C,2C,3C,4C,5C,3+1C,3+2C,4+1C
Section area 1.5MM2 - 400MM2





Copper 1 Core Steel Tape Armoured YJV22 Medium Voltage Cables 0





FAQ:


Q1. Are you trading company or manufacturer ?

A: We are professional manufacture with our own independent export rights.



Q2. What if I don’t find the type and size of cable I need on this page?

A: Don't worry. Contact us and send us your requirements, we will help you choose the correct cable you need. It is better if you have the following information: cable voltage, conductor material, insulation and outer sheath material, armor type. Otherwise, you can provide us with cable installation environment, application requirements, etc.



Q3. Can you produce according to the samples ?

A: Yes, we can produce by your samples or technical drawings.



Q4. How long is you delivery time ?

A: Depends on your quantity, normally 1-3 weeks.
