Product Details:
|
| Product Name: | Copper Wire Fire Resistant Control Farrow Cable H05VV-F | Conductor Material: | Copper Wire |
|---|---|---|---|
| Insulation Material: | PVC | Rated Voltage: | 300V/500V |
| Jacket: | PVC | Type: | Fire Resistant Cable |
| High Light: | Farrow H05VVF Flame Power Cable,Farrow Flame Retardant Power Cable,Copper RVV Wire Cable Farrow |
||

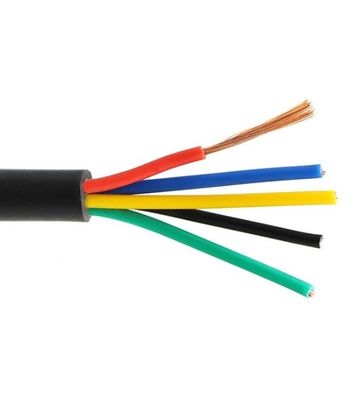

300V/500V Copper Wire Fire Resistant Control Farrow Cable H05VV-F
Instruction:
1. RVV implementation standard GB/T5023.5-2008
2. The rated voltage is 2271EC52 (300/300V) 2271EC53 (300/500V)
3. PVC sheath
4. Polyvinyl chloride insulation
5. The conductor is multi-core annealed bare copper stranded
6. The normal working temperature does not exceed 70℃
7. The product has passed CCC certification
Inspection requirements:
RVV refers to the multi-strand copper core flexible wire, the logo on the exterior line, the comparable thickness of the skin layer and the core. The skin layer is generally a polychloride material. The copper core is 19 strands. The specifications are generally 1, 1.5, 2.5 square millimeters .Look at the length of the line (a circle is 100 meters), the national standard line is 95-100 meters, and the non-standard line is about 90 meters.
Specificaiton:
| Product name | Fire Resistant Control Cable |
| Certifications | CE/CCC/ISO |
| Standard | IEC60502-1 |
| Rated Voltage | 300V/500V |
| Conductor material | Copper |
| Insulation Material | PVC |
| Armoured Material | None/Steel Tape/Steel wire |
| Jacket Material | PVC |
| Number of cores | 2-5 cores, 7-36 cores |
| Section area | 0.5-6 mm² |
|
Number of cores×standard cross section (mm)
|
Specification
|
Insulation thickness specified value (mm)
|
Specified value of sheath thickness (mm)
|
Conductor resistance Ω/km at 20℃ is not more than
|
|
|
Copper core
|
Galvanized copper core
|
||||
|
2×0.5
|
16/0.20
|
0.5
|
0.6
|
39.0
|
40.1
|
|
2X0.75
|
24/0.20
|
0.6
|
0.8
|
26.0
|
26.7
|
|
2X1
|
32/0.20
|
0.6
|
0.8
|
19.5
|
20.0
|
|
2X1.5
|
30/0.25
|
0.7
|
0.8
|
13.3
|
13.7
|
|
2X2.5
|
49/0.25
|
0.8
|
1.0
|
7.98
|
8.21
|
|
3×0.5
|
16/0.20
|
0.6
|
0.6
|
39.0
|
40.1
|
|
3X0.75
|
24/0.20
|
0.6
|
0.8
|
26.0
|
26.7
|
|
3X1
|
32/0.20
|
0.6
|
0.8
|
19.5
|
20.0
|
|
3X1.5
|
30/0.25
|
0.7
|
0.9
|
13.3
|
13.7
|
|
3X2.5
|
49/0.25
|
0.8
|
1.1
|
7.98
|
8.21
|
|
4X0.75
|
24/0.20
|
0.6
|
0.8
|
26.0
|
26.7
|
|
4X1
|
32/0.20
|
0.6
|
0.9
|
19.5
|
20.0
|
|
4X1.5
|
30/0.25
|
0.7
|
1.0
|
13.3
|
13.7
|
|
4X2.5
|
49/0.25
|
0.8
|
1.1
|
7.98
|
8.21
|
|
5X0.75
|
24/0.20
|
0.6
|
0.9
|
26.0
|
26.7
|
|
5X1
|
32/0.20
|
0.6
|
0.9
|
19.5
|
20.0
|
|
5X1.5
|
30/0.25
|
0.7
|
1.1
|
13.3
|
13.7
|
|
5X2.5
|
49/0.25
|
0.8
|
1.2
|
7.98
|
8.21
|
Fire Resistant Control Cable
