Product Details:
|
| Product Name: | Cu Core Steel Wire Armored Low Voltage Electrical Cable | Insulation Material: | XLPE |
|---|---|---|---|
| Conductor Material: | Cu | Application: | Construction,Underground,Industrial |
| Core: | 1, 2, 3, 3+1, 3+2, 4, 4+1, 5 Core | Jacket: | PVC |
| Standard: | IEC60502 | Armor: | Non-magnetic Steel Wire/low Carbon Steel Wire |
| High Light: | N2XRY Low Voltage Steel Wire Armored Cable,Low Voltage Steel Wire Armored Cable N2XRY,XLPE Insulated power cable |
||

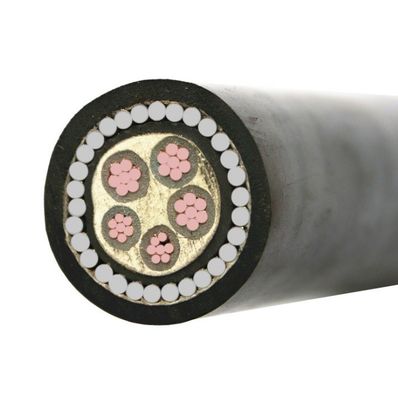

Cu Core Steel Wire Armored XLPE Insulated N2XRY Low Voltage Electrical Cable
Application:
1. N2XRY cable is suitable for rated voltage 0.6/1kV AC 50Hz power and distribution lines
2. Can be used for fixed industrial power applications, underground, etc.
3. With steel wire armor, it can provide good mechanical protection.
Construction:
Single-core
1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Cross-linked polyethylene XLPE
3. Inner sheath: Polyvinyl chloride PVC
4. Armour: Non-magnetic steel wire
5. Binder tape: Non-hygroscopic material
6. Outer sheath: Polyvinyl chloride PVC
Specificaiton:
| Product name | Low Voltage Electrical Cable |
| Certifications | CE/CCC/ISO |
| Standard | IEC60502-1 |
| Rated Voltage | 0.6/1 KV |
| Conductor material | Copper/Aluminum |
| Insulation Material | XLPE/PVC |
| Armoured Material | None/Steel Tape/Steel wire |
| Jacket Material | PVC |
| Number of cores | 1C,2C,3C,4C,5C,3+1C,3+2C,4+1C |
| Section area | 1.5MM2 - 400MM2 |
Pledge:
1. Pre-sale service
- Introduce the product and its performance and related technical parameters in use, offer consultation, and answer various questions raised by customers during installation and use.
- According to the customer's introduction of the use environment, use conditions, current carrying capacity and other factors, provide customers with reference and consultation.
2. In-sale service
- Sign ordering contracts with customers in time, and provide customers with immediate consultation on the production progress of the products;
- Supervise whether the product is packaged and transported in accordance with user requirements and regulations;
- Timely track whether the product transportation arrives at the customer safely, on time, with quality and quantity;
3. After-sales service
- Deal with customer calls, letters and visits in a serious and timely manner, and quickly solve various problems found by users;
- If users have any technical quality problems, give them a satisfactory answer within one working day.
