|Product Name:||Steel Reinforced Aluminum Overhead Cables||Insulation:||XLPE|
|Jacket:||N/A||Cable Type:||Underground Cable|
XLPE Aluminum Overhead Cable,
Steel Reinforced Aluminum Overhead Cable,
Low Voltage ABC Wire

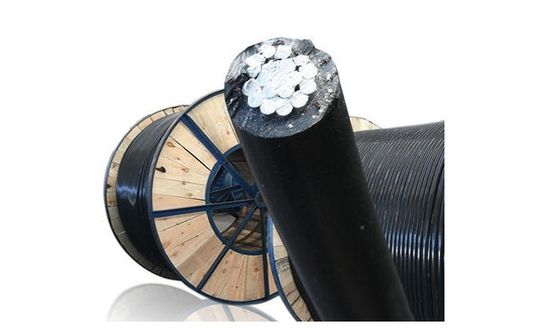

XLPE Conductor Steel Reinforced Aerial ABC Aluminum Overhead Cables Support
Aluminum-clad wire is designed for overhead secondary distribution lines. Covered wires are not electrically insulated conductors and are considered bare conductors when installed. The insulating layer prevents the circuit from being interrupted due to weather.
Phase conductor: aluminum stranded(AAC)
Neutral conductor: aluminum stranded(AAC), aluminum alloy stranded(AAAC), Aluminum conductor steel reinforced(ACSR)
Insulation: PVC, XLPE, PE or LDPE
The maximum temperature of the conductor: under normal (90°C), emergency (130°C) or short-circuit conditions for no more than 5 seconds (250°C).
Minimum ambient temperature: When the ambient temperature is lower than 0℃, the cable needs to be preheated
Minimum bending radius: single-core cable 20 (d + D) ± 5%
Multi-core cable 15(d+D)±5%
We are a professional manufacturer and supplier of coated wire (aluminum coated wire factory) in China. Our products also include: AAC, AAAC, ACSR, ACAR, galvanized steel wire, aluminum clad steel wire, PVC wire, PVC/XLPE power cable, overhead bundled cable, rubber cable, control cable, etc. If you have a purchase requirement, please contact us and we will quote you in time.
|Product name||Aluminum Overhead Cables|
|Standard||GB, IEC, BS, ASTM|
|Test voltage||4 KV|
|Phase Conductor||Stranded Aluminum Wires|
|Insulation||Cross-linked polyethylene (XLPE)|
|Neutral||AAC AAAC ASCR|
|Laying temperature||min. -20|
|Operating temperature||-30 to +80|
Q1. Are you trading company or manufacturer ?
A: We are professional manufacture with our own independent export rights.
Q2. What if I don’t find the type and size of cable I need on this page?
A: Don't worry. Contact us and send us your requirements, we will help you choose the correct cable you need. It is better if you have the following information: cable voltage, conductor material, insulation and outer sheath material, armor type. Otherwise, you can provide us with cable installation environment, application requirements, etc.
Q3. Can you produce according to the samples ?
A: Yes, we can produce by your samples or technical drawings.
Q4. How long is you delivery time ?
A: Depends on your quantity, normally 1-3 weeks.
